Deploy Sample Application
To deploy the 2048 game sample application, in the same terminal window run the following command:
kubectl apply -f 2048_full.yaml
This creates/updates four resources that together deploy the 2048 web application and expose it to the internet via an AWS ALB.
Monitor the Application
To see Auto Mode in action, we can monitor the nodes and pods in separate terminal windows. We can watch the nodes go from No resources found to NotReady and then Ready as the request is made.
kubectl get nodes -w
NAME STATUS ROLES AGE VERSION
i-0579304fc41fb401f NotReady <none> 0s v1.34.2-eks-b3126f4
i-0579304fc41fb401f Ready <none> 1s v1.34.2-eks-b3126f4
We can also watch the pods in the game-2048 namespace go from Pending to ContainerCreating to Running for the 5 pods requested.
kubectl get pods -n game-2048 -w
NAME READY STATUS RESTARTS AGE
deployment-2048-7bf64bccb7-j4kbr 0/1 Pending 0 0s
deployment-2048-7bf64bccb7-5fwhm 0/1 Pending 0 0s
deployment-2048-7bf64bccb7-wwkk8 0/1 Pending 0 0s
deployment-2048-7bf64bccb7-cq6dz 0/1 Pending 0 0s
deployment-2048-7bf64bccb7-hdwjc 0/1 Pending 0 0s
deployment-2048-7bf64bccb7-hdwjc 0/1 ContainerCreating 0 19s
deployment-2048-7bf64bccb7-j4kbr 0/1 ContainerCreating 0 19s
deployment-2048-7bf64bccb7-5fwhm 0/1 ContainerCreating 0 19s
deployment-2048-7bf64bccb7-wwkk8 0/1 ContainerCreating 0 19s
deployment-2048-7bf64bccb7-cq6dz 0/1 ContainerCreating 0 19s
deployment-2048-7bf64bccb7-hdwjc 1/1 Running 0 26s
deployment-2048-7bf64bccb7-j4kbr 1/1 Running 0 26s
deployment-2048-7bf64bccb7-5fwhm 1/1 Running 0 26s
deployment-2048-7bf64bccb7-wwkk8 1/1 Running 0 27s
deployment-2048-7bf64bccb7-cq6dz 1/1 Running 0 27s
Next we want to get the ALB configuration for the ingress. We can do this by running the following command.
kubectl get ingress -n game-2048
The response will show the ADDRESS which is the public DNS name of the ALB that has been created.
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-2048 alb * k8s-game2048-ingress2-d14358e9b2-2110109076.eu-west-2.elb.amazonaws.com 80 31s

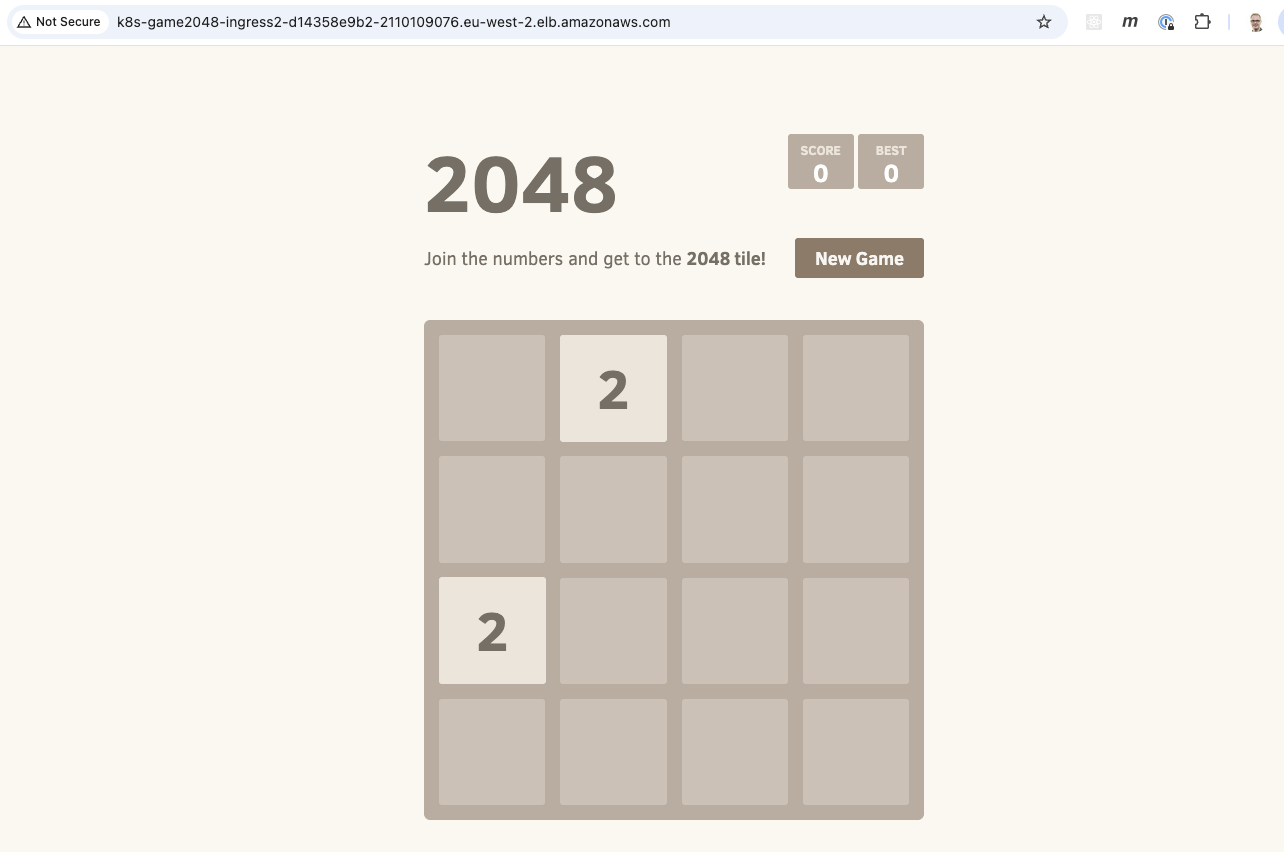

It will take a few minutes for the load balancer to be provisioned and the listeners and target groups set up. Once complete, you can enter the DNS name into a browser window and start playing the game.
Check config in the AWS Console
We can also go into the AWS Console and look at what has been setup in the EKS cluster as well as the ALB.

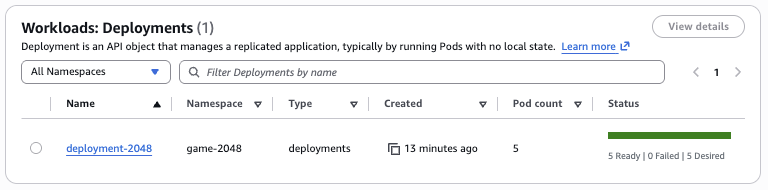

We can click through the Amazon EKS tabs in the console and see the deployment that has been created.

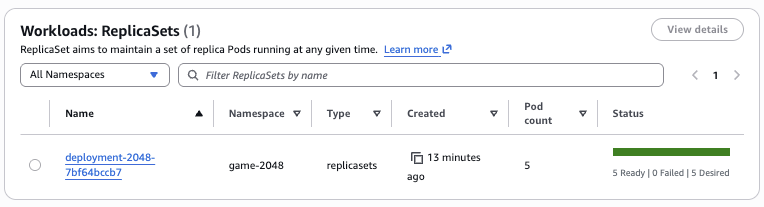

We can see the ReplicaSet created that has a pod count of 5.

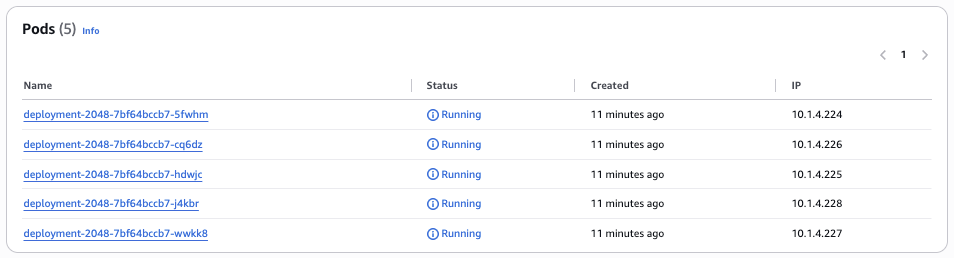

We can also view the 5 running pods.

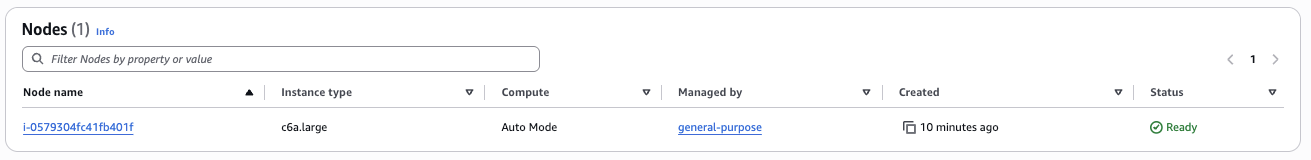

These have all been deployed on a single general purpose node.
The node has an instance type of c6a.large. The c instance family type is one of the 3 instance family types supported by the general-purpose node pool as we saw in a previous section.
How many pods can I run on a node?
A common question is how many pods you can actually run on a given node. With EKS Auto Mode this is less important as you no longer need to worry about pod density and Auto Mode will automatically provision nodes and select instance types. However, it's still interesting to understand how this is calculated.
We can view the capacity allocation for a given EKS node in the AWS console.

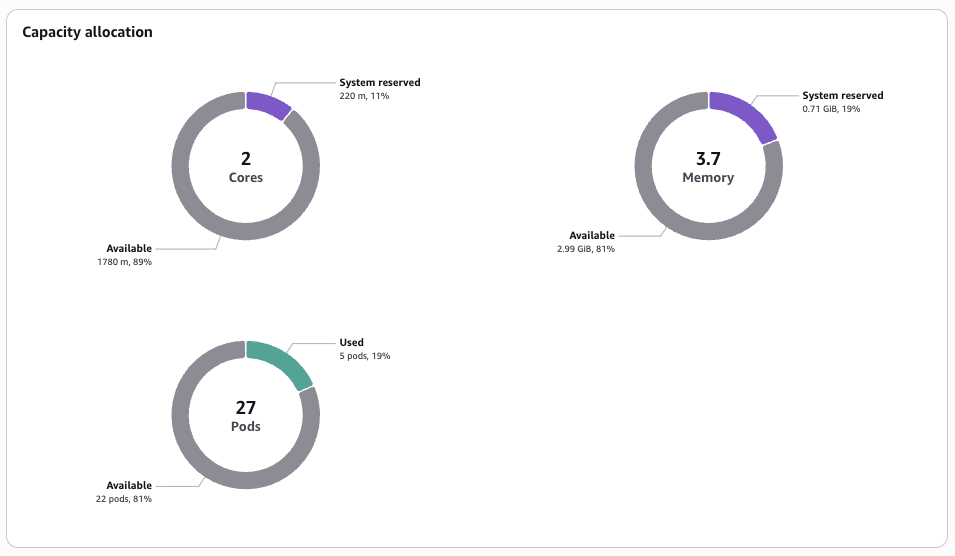

This diagram shows capacity allocation across cores, memory and pods. We can get more information about the node by using the following command to describe it.
kubectl describe node i-0579304fc41fb401f
...
Addresses:
InternalIP: 10.1.4.110
InternalDNS: ip-10-1-4-203.eu-west-2.compute.internal
Hostname: ip-10-1-4-203.eu-west-2.compute.internal
Capacity:
cpu: 2
ephemeral-storage: 81854Mi
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 3881108Ki
pods: 27
Allocatable:
cpu: 1780m
ephemeral-storage: 76173383962
hugepages-1Gi: 0
hugepages-2Mi: 0
memory: 3136660Ki
pods: 27

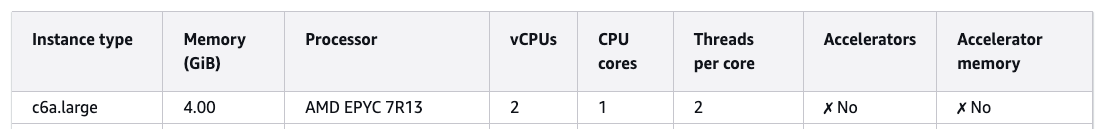

If we look at the AWS documentation we can see the following details about c6a.large instance type.
The node has 2 vCPU capacity. However, we can see that only 1780m is allocated or 1.78 CPU cores. This is because 220m (or 0.22 CPU cores) are reserved for things like Linux kernel and Bottlerocket OS processes.
Although the node is documented as having 4.00 Gib of memory, there is only 3.7 Gib available and only 2.99 Gib of this is available to pods. This means that if you scheduled Pods with configuration such as:
resources:
requests:
memory: 512Mi
You can only fit 5 pods max on the node, even though you may think there is 4 Gib available from the documentation.
We can also see that the node has a pod capacity of 27 pods. Each pod has its own IP address, however, the node itself has a single IP address (10.1.4.100). So how does this work? This is because Pod IP's come from additional addressing resources attached to the node ENI's. Auto Mode calculates max pods per node based on the number of ENIs and IPs supported per instance type (assuming the worst case of fragmentation). If we run the following command for the c6a.large instance type:
aws ec2 describe-instance-types \
--instance-types c6a.large \
--query "InstanceTypes[0].NetworkInfo.{MaxENIs:MaximumNetworkInterfaces,Ipv4PerENI:Ipv4AddressesPerInterface}"
We see that there are 3 ENIs attached to the node, and each ENI can have 10 IPv4 addresses:
{
"MaxENIs": 3,
"Ipv4PerENI": 10
}
On every ENI, one of these IP addresses is the ENI's primary IP, with 9 remaining IP addresses available as secondary IPs. The 9 secondary IP addresses multipled by the 3 ENIs gives us the 27 Pod capacity.
